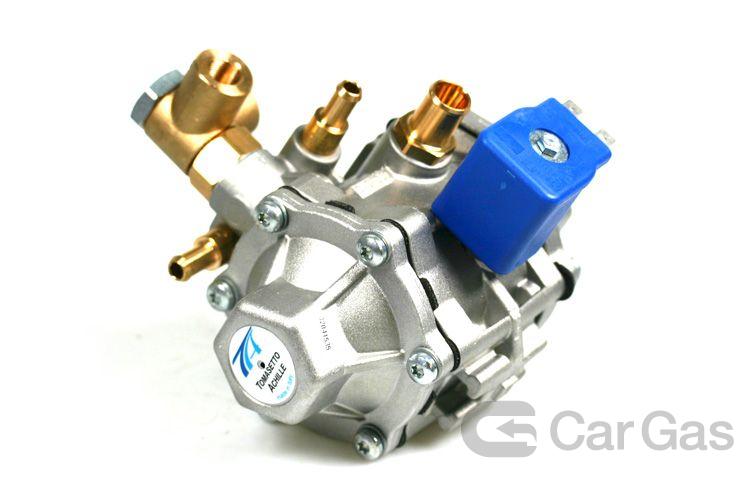

RIDUTTORE AT12 CNG fino a 250 HP TOMASETTO
€ 0,00 Iva esclusa
Codice Articolo: AT12 RMAT3800
In stock
Vuoi maggiori informazioni sul nostro prodotto RIDUTTORE AT12 CNG fino a 250 HP TOMASETTO puoi inviarci la tua richiesta.
Richiedi info prodotto
Richiedi info prodotto
|
Technical data reducer AT12 RMAT3800 |
|
| Material |
Aluminium die cast body
|
| Weight |
1.5 kg
|
| Dimensions |
120x145x155 mm
|
| Max. inlet pressure |
26 MPa
|
| Outlet pressure |
variable from 100 bis 250 kPa *
|
| Solenoid voltage |
12 V DC
|
| Solenoid absorption |
17 W
|
| Intel connection |
M12x1 pipe ø6 mm
|
| Outlet connection |
Fixed fitting ø14 mm
|
| Engine power |
till 185 KW
|
*pressure reffered to the pressure of the engine manifold when MAP is connected
Lower temperatures could reduce efficiency of the reducer and performance of engine; in case of permanently higher temperatures, the reducer can be used also on more powerful engines
