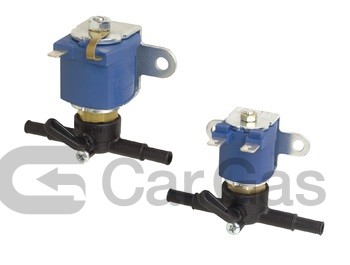

ELETTROVALVOLA TIPO 12 BENZINA

CARATTERISTICHE

Shut-off elettrovalvola per tubo di gomma int. diam. 6 millimetri o 8 millimetri

Disponibile con o senza ritorno

Con o senza rubinetto manuale di servizio

SPECIFICHE TECNICHE

Material              Plastic polymer

Available applications    Petrol, Gasoline

Max. working pressure                0,7 MPa (7 bar)

Working temperature   -30°C +120°C

Approval             R10-03

Flow rate with air [nl/h]

varying pressure at ambient temperature          9100 @ 1 bar – 11000 @ 2 bar

Fixing

Coil armature with bracket and holes    Ø 5,5 mm – Ø 6,5 mm

Coil type Big

12 V – 8 W          Lucar Plugs connection

Coil type Big

12 V – 11 W        Lucar plugs and ground connector

Coil type Small

24 V – 8 W          AMP SUPERSEAL 1.5 connection

Coil type Small

24 V – 8 W          Connection wires L=140mm

ACCESSORIES    Lucar plugs protection – Nut M6 – Washer ?6 – Screw UNI6949 – Screw UNI5725 – Nut M5 – Washer ?5 – Screw UNI6950 – Screw UNI5739

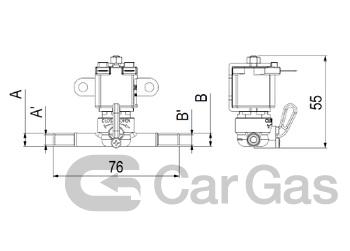

OPZIONI

Ingresso              (A) 8 – 6

Uscita, Connessione      (B) 8 – 6
