ELETTROVALVOLA TIPO 10 GPL

CARATTERISTICHE

Può essere montato direttamente al vaporizzatore

Con filtro integrato (*)

Sui tubi forniture GPL

Disponibile in versione standard portata (STD) e versione grande portata (BFC)

SPECIFICHE TECNICHE

Material              Aluminum

Available applications    LPG

Max. working pressure                3 MPa (30 bar)

Working temperature   -20°C +120°C

Approval             ECE R67-01 ECE R10-03

Flow rate with air [nl/h]

varying pressure at ambient temperature          STANDARD 6000 @ 1 bar – 10000 @ 2 bar / BFC 9000 @ 1 bar – 15000 @ 2 bar

Fixing

Coil armature with bracket and holes    Ø 5,5 mm – Ø 6,5 mm

Coil type Big

12 V – 11 W        Lucar Plugs connection

Coil type Big

12 V – 8 W          Lucar Plugs

Coil type Small

24 V – 11 W        AMP SUPERSEAL 1.5 connection

ACCESSORIES    Screw and bicone for tube ?6 – Screw and bicone for tube ?8 – Screw M5x1 – Nut M5 – Washer ?5 – Screw UNI6950

OPZIONI

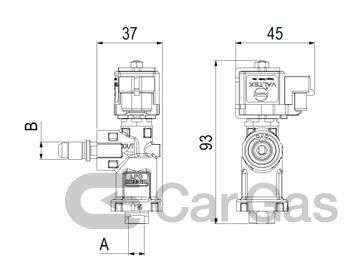

Ingresso              (A) ¼”-18 NPT – 1/8”-27 NPT – M10x1 – M12x1

Uscita, Connessione      (B) ¼”-18 NPT – 1/8”-27 NPT – M10x1 – M12x1
