ELETTROVALVOLA TIPO 05 GPL

CARATTERISTICHE

Valvola on / off di intercettazione senza filtro

Ingresso / raccordo di uscita a 90 °

Ingresso e uscita maschio filettato su richiesta

Montare la valvola e connettersi ad alimentare tubo di alimentazione o tubo

SPECIFICHE TECNICHE

Material              Brass

Available applications    LPG, petrol, diesel

Max. working pressure                3 MPa ( LPG) 0,7 MPa (petrol and gasoline)

Working temperature   -20°C +120°C

Approval             ECE R67-01 UL standard 429 AGA Australia ECE R10-03

Flow rate with air [nl/h]

varying pressure at ambient temperature          5800 @ 1 bar – 12500 @ 2 bar

Fixing

Coil armature with holes             Ø 5,5 mm – Ø 6,5 mm – Coil armature with holes M4 mm

Coil type Small

12 V – 11 W        Lucar Plugs connection

Coil type Small

12 V – 8 W          Lucar plugs and ground connector

Coil type Small / Big

24 V – 11 W        AMP SUPERSEAL 1.5 connection

Coil type Big

24 V – 8 W          Connection wires L=140mm

Coil type Big

12 V – 8 W + diodo          SICMA 2

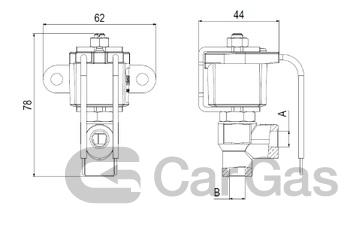

OPZIONI

Ingresso              (A) 1/8”- 27 NPTF F – 9/16”- 18 UNF M – M10x1 F – ¼”-18 NPT F

Uscita, Connessione      (B) 1/8”- 27 NPTF F – 9/16”- 18 UNF M – M10x1 F – ¼”-18 NPT F – ¼”-18 NPT M
