ELETTROVALVOLA TIPO 04 GPL

CARATTERISTICHE

Valvola on / off di intercettazione senza filtro

Raccordo di ingresso femminile; Attacco di uscita maschio o femmina

Montare la valvola e connettersi ad alimentare tubo di alimentazione o tubo)

SPECIFICHE TECNICHE

Material              Brass

Available applications    LPG, petrol, diesel

Max. working pressure                3 MPa (GPL / LPG) 0,7 MPa ( petrol, diesel)

Working temperature   -20°C +120°C

Approval             ECE R67-01 UL standard 429 ECE R10-03

Flow rate with air [nl/h]

varying pressure at ambient temperature          5700 @ 1 bar – 12500 @ 2 bar

Fixing

Coil armature with holes             Ø 5,5 mm – Ø 6,5 mm

Coil type Big

12 V – 11 W        Lucar Plugs connection

Coil type Big

12 V – 8 W          Lucar plugs and ground connector

Coil type Small

24 V – 11 W        AMP SUPERSEAL 1.5 connection

Coil type Small

24 V – 8 W          Connection wires L=140mm

Coil type Small

12 V – 8 W + diodo          SICMA 2

OPZIONI

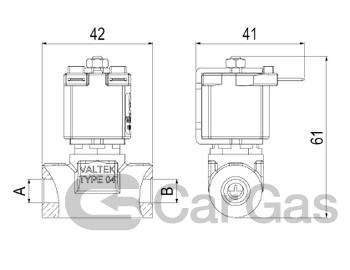

Ingresso              (A) M10x1 – 1/8”- 27 NPTF – ¼”- BSPT F – ¼”-18 NPT F

Uscita, Connessione      (B) M10x1 F – 1/8”- 27 NPTF F – ¼”- BSPT F – ¼”-18 NPT F – ¼”-18 NPT M
