ELETTROVALVOLA TIPO 03 GPL

CARATTERISTICHE

Valvola on / off di intercettazione con filtro incorporato, sostituibile (*)

Filter può essere sostituito e / o pulito senza scollegare i tubi GPL

Ingresso Femminile collegamento / uscita a 90 °

Compatti e poco ingombranti

Montaggio diretto sulla vaporizzatore e sulle forniture di tubi (liquido gpl)

SPECIFICHE TECNICHE

Material              Brass

Available applications    LPG

Max. working pressure                3 MPa (30 bar)

Working temperature   -20°C +120°C

Approval             ECE R67-01 ECE R10-03

Flow rate with air [nl/h]

varying pressure at ambient temperature          5500 @ 1 bar – 10000 @ 2 bar

Fixing

Coil armature with holes             Ø 5,5 mm – Ø 6,5 mm

Coil type Big

12 V – 11 W        Lucar Plugs connection

Coil type Big

12 V – 8 W          Lucar plugs and ground connector

Coil type Small

24 V – 11 W        SICMA 2

Coil type Small

12 V – 8 W + diodo          AMP SUPERSEAL 1.5

ACCESSORIES    Screw and bicone for tube ?6 – Nut M6 Washer ?5 – Washer ?6 – Screw UNI6949 – Screw UNI5725 – Screw UNI5739 – Fixing bracket Ground cable L=150mm Threaded fitting M12x1 M / M10x1 F Copper washer ?16 Clamp nut ?6 Nipple M10x1-1 / 2 "UNF SAE 45°

OPZIONI

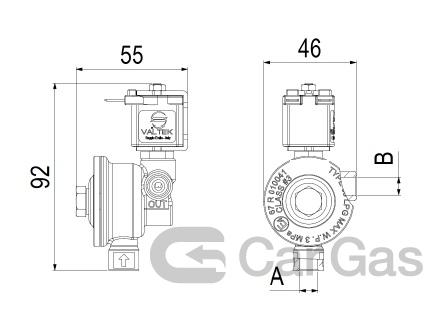

Ingresso              (A) M10x1 – 1/8”- 27 NPTF

Uscita, Connessione      (B) M10x1 – 1/8”- 27 NPTF
