ELETTROVALVOLA TIPO 02 GPL

CARATTERISTICHE

Valvola on / off di intercettazione con filtro incorporato, sostituibile

Ingresso Femminile collegamento / uscita a 90 °

Raccordo diretto con capezzolo sul vaporizzatore (liquido gpl)

Sulla tubazione forniture GPL (liquido gpl)

SPECIFICHE TECNICHE

Material              Brass

Available applications    LPG

Max. working pressure                315 psi (21,72 bar)

Working temperature   -40 °C 120 °C

Approval             UL standard 429 ECE R10-03

Flow rate with air [nl/h]

varying pressure at ambient temperature          8100 @ 1 bar – 11500 @ 2 bar

Fixing

Coil armature with holes             Ø 5,5 mm – Ø 6,5 mm

Coil type Big

12 V – 11 W        Lucar Plugs connection

Coil type Big

12 V – 8 W          Lucar plugs and ground connector

Coil type Small

24 V – 11 W        AMP SUPERSEAL 1.5 connection

Coil type Small

12 V – 8 W + diodo          Connection wires L=140mm

ACCESSORIES    Nut M6 – Washer ?6 – Screw UNI6949 – Screw UNI5725 – Ring for valve body

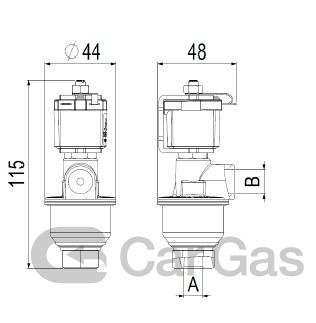

OPZIONI

Ingresso              (A) 1/4”-18 NPT

Uscita, Connessione      (B) 1/4”-18 NPT
